What makes Lehmann Phonolith SE different from standard phono stages?

DC-powered Black Cube SE design with relay-precise 60/66dB MC gain and ultra-low noise floor for silent MC tracking down to 0.2mV.

Which cartridges does it support?

MC (60/66dB): 50/100/470/1kΩ + custom loading. MM (40/46dB): 47k/100kΩ + 120-200pF capacitance.

What is the subsonic filter for?

15-20Hz rumble filter eliminates turntable rumble without phase distortion – perfect for warped records.

Does it have dual-mono design?

Yes – >90dB channel separation with independent L/R circuits for ultimate stereo imaging.

Compatible power supplies?

DC-powered – works with Lehmann PWX, Black Cube LPS, or high-quality DC adapters (12-24V).

What makes Lehmann Decade different from Black Cube?

Dual-mono design + separate PWX II linear PSU with inductive filtering. Zero global feedback Class A output, passive MKP RIAA network.

Maximum gain and cartridge compatibility?

66dB for MC (handles <0.38mV), 46dB MM. Custom impedance slot + 47pF-1370pF capacitance via DIP switches.

Key technical specifications?

>80dB channel separation, 0.07µV MC noise floor, 0.03% THD, 50Hz subsonic filter, 5Ω output impedance.

Power supply details?

PWX II: 28VA toroidal transformer + inductive filtering. Neutrik XLR umbilical. 13VA total consumption.

Ultra-low output MCs, high-compliance MMs, long cable runs, critical listening systems between Black/Silver Cube.

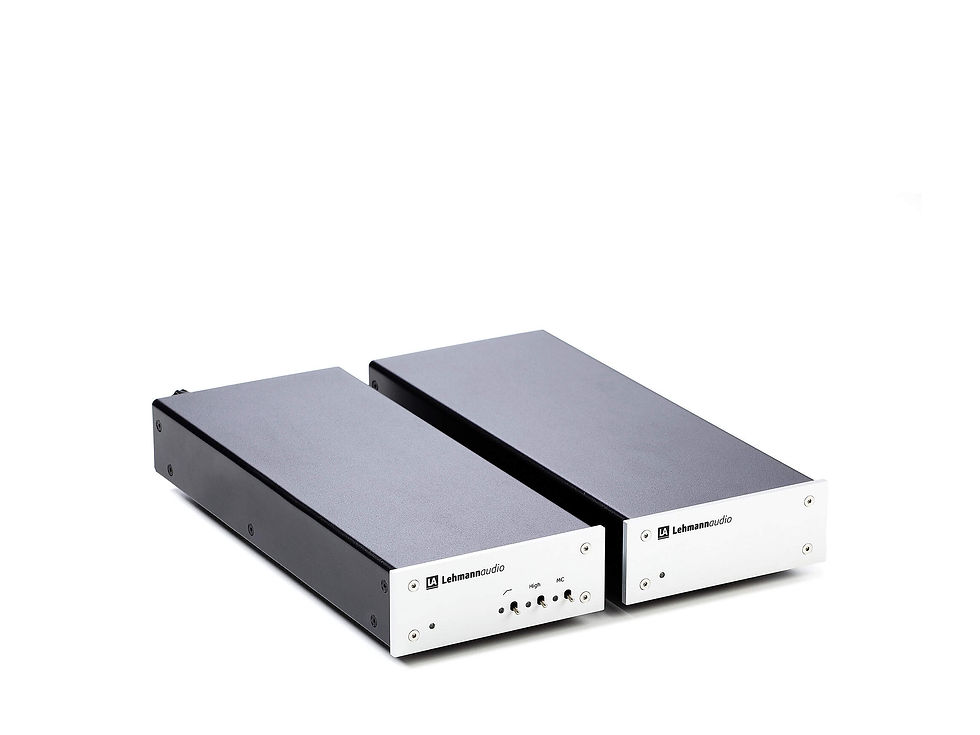

Lehmann Audio Decade – Reference Dual-Mono Phono Stage
PWX II Linear PSU - 66dB MC Gain - Zero Global Feedback - Custom Loading

Ultimate Vinyl Companion Between Black Cube & Silver Cube
Dual-mono design with separate PWX II power supply (28VA toroidal + inductive filtering) isolates audio circuits completely. Zero-global-feedback Class A output stage drives any cable length effortlessly. Passive RIAA network uses precision MKP capacitors between two linear gain stages for perfect transients + timbre accuracy.

Universal Cartridge Compatibility

Gain: 36/46dB (MM), 56/66dB (MC)
Input Impedance: 47kΩ, 1kΩ, 100Ω + custom slot
Input Capacitance: 47pF to 1,370pF (DIP switch selectable)
Channel Separation: >80dB @ 10kHz
Output Impedance: 5Ω
Subsonic Filter: 50Hz, 6dB/oct

Reference Measurements

Parameter	Value
Max Input MM/MC	45mV / 4.5mV
SNR MM/MC	78dB / 69dB
Noise Floor MC	0.07µV (A-wtd)
THD	0.03%
Dimensions (WxDxH)	110×280×50mm
Weight	Audio: 0.87kg, PSU: 1.56kg

Front Panel Precision

MM/MC selector, High Gain toggle, Soft Bass Rolloff filter. Rear: Gold RCA I/O, Neutrik XLR PSU umbilical. DIP switches (underside) for precise loading.

Proven Applications

Low-output MCs (<0.38mV), high-compliance MM, longest cable runs, dual-table setups. Military-grade components from studio console designs.
