The design.

The TUBECORE is a fully symmetric transformer balanced stereo mastering compressor. The structure is based on the typical vari-mu solution. Apart from the classic INPUT, THRESHOLD and OUTPUT controls it introduces a switchable high pass filter in the sidechain, parallel compression (MIX knob), independent ATTACK and RELEASE switches, and user replaceable tubes accessible from the back of the unit.

'The TUBECORE adds density and dimension to your mix in a magical way.'

Comfort of use.

The Tubecore was designed as a studio mastering compressor. It is built using the 3U enclosure, which improves front panel clarity and makes it easier to replace tubes located at the back. The compressor allows you to work either in dual mono or mid/side mode (M/S). The Mode switch has two bypass positions – they both do the same, but we added the second one for your comfort and quick A/B comparing.

The tubes.

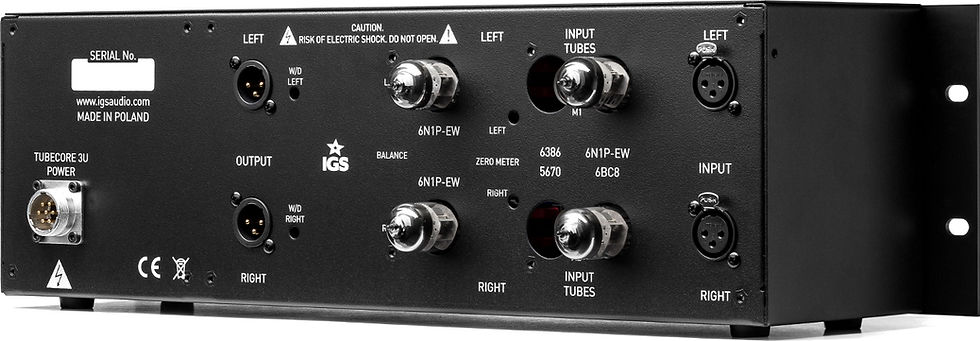

The design of the Tubecore is based on the possibility to replace the tubes. As a user, you can choose between a few types: 6N1P-EW (6N3P-EW) – standard set of tubes, “standard” IGS compression, 6BC8/6BZ8 – tight, transparent, punchy compression, 6386 – legendary compression, by famous twin triode, 5670 – deep and dark tube compression. The User's Manual describes in detail how to replace tubes, so it is quick and straightforward.

The user decides how the device should sound.

The quality.

Every single TUBECORE is hand made with high quality, matched components (1% metal film resistors, Wima caps). It is equipped with 6N1P-EW (6N3P-EW) NOS tubes and individually calibrated to give you the unique and unspoiled experience of one of the best vari-mu compressors in history. It is equipped with IGS Custom Made audio transformers.

basierend auf einer typischen vari-mu Lösung
komplett Übertrager symmetriert
schaltbares Sidechain High Pass Filter
parallele Kompression (MIX Knopf)
Attack und Release getrennt regelbar
Röhren austauschbar durch Anwender
VU-Meter
24 pole Elma Schalter
MID/SIDE Funktionalität
Eingang: XLR symmetrisch
Ausgang: XLR symmetrisch
externes Netzteil
Gehäuseform: 19" / 3 HE
